Συστήματα UV ποσίμου νερού για μικρές πόλεις και κοινότητες σειράς UVSwiftsc









TrojanUVSwiftSC

The TrojanUVSwift™SC is a validated, compact UV system that offers communities an economical solution for drinking water disinfection.

Drinking Water Confidence for Communities

Designed to meet the needs small, but as well as larger communities, the TrojanUVSwift™SC offers communities an economical solution for drinking water disinfection.
It’s engineered and built to provide reliable performance, simplified maintenance, and reduced operating costs with innovative features like a hydraulically optimized, “L-shaped” chamber, high-intensity amalgam lamps and optional automatic or manual sleeve wiping.

















Compact Footprint, Energy-Efficient Design

The TrojanUVSwiftSC's compact footprint simplifies installation and minimizes related capital costs – making it ideal for retrofit applications into existing water treatment plants. It is also engineered to fit pipe systems with very restricted available space.

















Providing Validated, cost-effective UV Disinfection

The TrojanUVSwiftSC is bioassay validated, having undergone rigorous DVGW and USEPA certification to ensure verified dose delivery, maximum public safety and peace of mind.
The validated dose range includes required doses for 4-log virus inactivation, determined using a high-resistance surrogate organism.

These efficient, robust UV systems offer a wide range of communities an efficient, economical solution for drinking water disinfection.

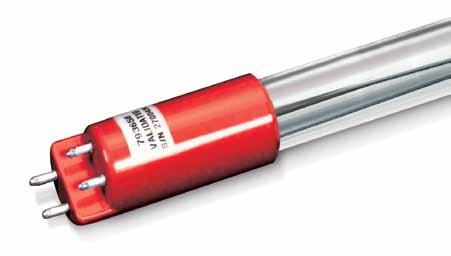

Energy Efficient, High-Output Amalgam Lamps

The TrojanUVSwift™SC requires 1/2 to 1/3 fewer lamps to deliver the required dose compared to traditional UV systems using low-pressure lamps. With fewer lamps, the TrojanUVSwift™SC is compact and draw less energy than competitive high-output systems – minimizing capital and operating costs.

























Robust Sleeve Wiping Systems

The automatic wiping systems minimize fouling of the quartz sleeves. The system operates online while the lamps are disinfecting, reducing downtime.

System Characteristics

Flow rate: 5 to 2,500 m3/hr
Power: 180W to 7500W
Number of lamps : 2 to 30 lamps per chamber
Lamp Type: High-efficiency, high-output, low-pressure amalgam
UVT Range: 70% to 98%
Chamber material: 316L stainless steel
Max Pressure: 10Bar

• Standard UV intensity sensor
• Remote ON/OFF, (24V - 280V) / Analog Output
• Intensity regulation 60 to 100%
• Optional SCADA Communication

These efficient, robust UV systems offer a wide range of communities an efficient, economical solution for drinking water disinfection.
