Open channel wastewater UV systems UV3000Plus series

TrojanUV3000Plus - UV for Medium and Large Plants

Designed for medium to large wastewater treatment plants and features the patented ActiClean Cleaning System, an automatic chemical/mechanical wiping system.

UV is the most effective, safe and environmentally friendly way to disinfect wastewater. It provides broad-spectrum protection against a wide range of pathogens, including bacteria, viruses and chlorine-resistant protozoa (such as Cryptosporidium and Giardia).


Proven Industry Leader and the Standard in UV

The TrojanUV3000Plus™ is one of the reasons why UV treatment is now a standard technology in wastewater treatment. This highly flexible system has demonstrated its effective, reliable performance around the world. The system is well-suited to wastewater disinfection with varying flow rates and influents, such as combined sewer overflows, primary and tertiary wastewater reclamation and reuse.

Designed for Efficient, Reliable Performance

The TrojanUV3000Plus™ features Trojan’s patented ActiClean automatic chemical/mechanical sleeve wiping system that further reduces operation and maintenance.
Long-lasting amalgam lamps and variable-output ballast optimize UV output to meet wastewater conditions and to maximize system efficiency - reducing operating costs by as much as 30% per year.

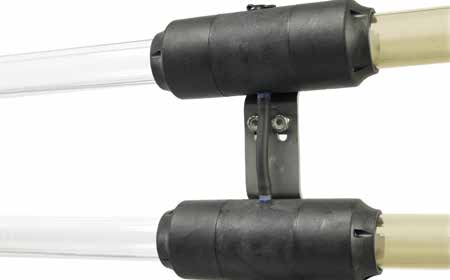

ActiClean Eliminates Sleeve Fouling

The dual-action, chemical/mechanical cleaning with the ActiClean system provides superior sleeve cleaning and reduces maintenance costs. Fouling and residue build-up on quartz sleeves reduces system efficiency. ActiClean maintains at least 95% transmittance, ensuring sleeves are clean and the system is consistently delivering accurate dosing while reducing power consumption. Cleaning occurs automatically while the lamps are disinfecting. There’s no need to shut down the system, remove or bypass lamp modules for routine cleaning.

Amalgam Lamps Require Less Energy

Trojan’s amalgam lamps produce significantly higher UV output than conventional low-output lamps, therefore fewer lamps are required to deliver the required dose, which reduces O&M costs. Trojan's high-efficiency lamps are validated to deliver 98% of full UV output after more than one year of use.

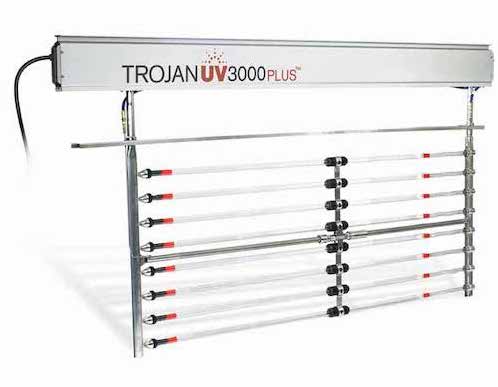

Advanced, Self-Contained UV Module

The electronic ballasts are housed right in the module, reducing the system footprint, minimizing installation time and costs, and eliminating the need for separate external cabinets since they are cooled by convection. The ballast enclosures are rated TYPE 6P (IP67) – air/water tight. The entire system can be installed outdoors to reduce capital costs - no building, shelter or HVAC is required.

Regulatory-Endorsed Bioassay Validation

The TrojanUV3000Plus has been thoroughly validated through real-world bioassay testing under a wide range of operating conditions. In-field bioassay testing offers the peace of mind and improved public and environmental safety of verified dose delivery – not theoretical calculations.


System Characteristics

Typical Applications: Wide range of wastewater treatment plants
Flowrate: up to 10,000m3/h or more
Lamp Type: Low-pressure, high-efficiency amalgam (monochromatic)
Ballast Type: Electronic, high-efficiency, variable output (60 to 100% power)
Lamp life warranty: 12,000hours
Input Power Per Lamp: 250 Watts
Lamp Configuration: Horizontal, parallel to flow
Module Configuration: 4, 6 or 8 lamps per module
System configuration: One or more banks of modules in series, one or more channels in parallel
Level Control: Automatic Level Controller, fixed weir or motorized weir
Water Level Sensor: 1 electrode low water level sensor per channel
Ballast Cooling Method: Convection; no air conditioning or forced air required
Installation Location: Indoor or outdoor
Sleeve Cleaning:: ActiClean™ Cleaning System
Automatic Chemical/Mechanica

ActiClean™-WW Gel: non-corrosive, operator-friendly, food-grade

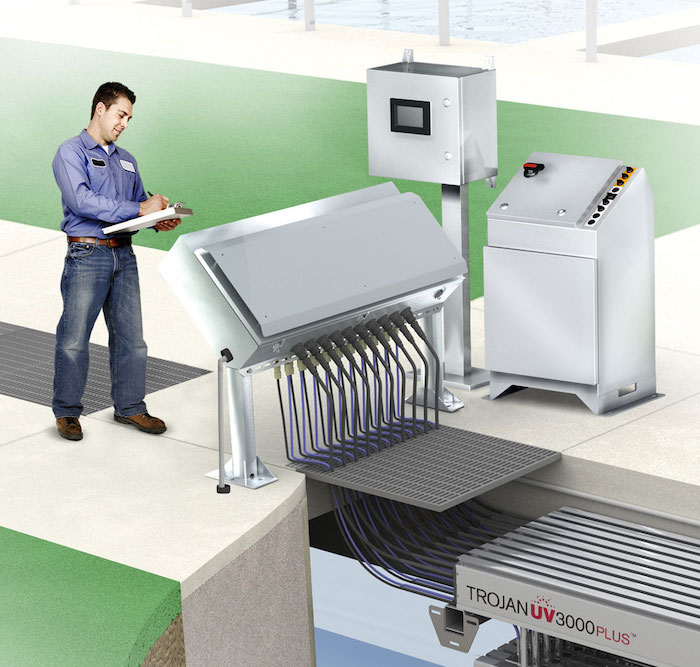

Control units:

• System Control Center (SCC), microprocessor or PLC-based
• Power Distribution Center (PDC)
• Hydraulic System Center HSC (for ActiClean™)

The System Control Center (SCC), the Power Distribution Center (PDC) & the Hydraulic System Center HSC (for ActiClean™) control and monitor the automatic operation of the whole system.

The Automatic Level Controller(ALC) keeps the correct water level in the channel and the Water Level Sensor protects the lamps from running dry.
