L90 - L132 RS (90 - 132kW)

Lubricated Rotary Screw Compressor fixed and variable speed
From 90 to 132 kW, L90 – L132 RS

The quality of the CompAir L90 - L132 RS industrial compressor range goes well beyond your expectations. They are the most widespread air compressors in the industry renowned for their quality and reliability. This series includes fixed and adjustable RS (inverter) models, with unique advantages and a 10 year CompAir AssureTM factory warranty.

The special design of the new L90-L132 RS compressors range from 90 to 132 kW offers improved up to 6% energy efficiency compared to the top models in the market, as well as 7% more air supply. The new compressors are available in both fixed and regulated inverters. Available with air or water cooling.

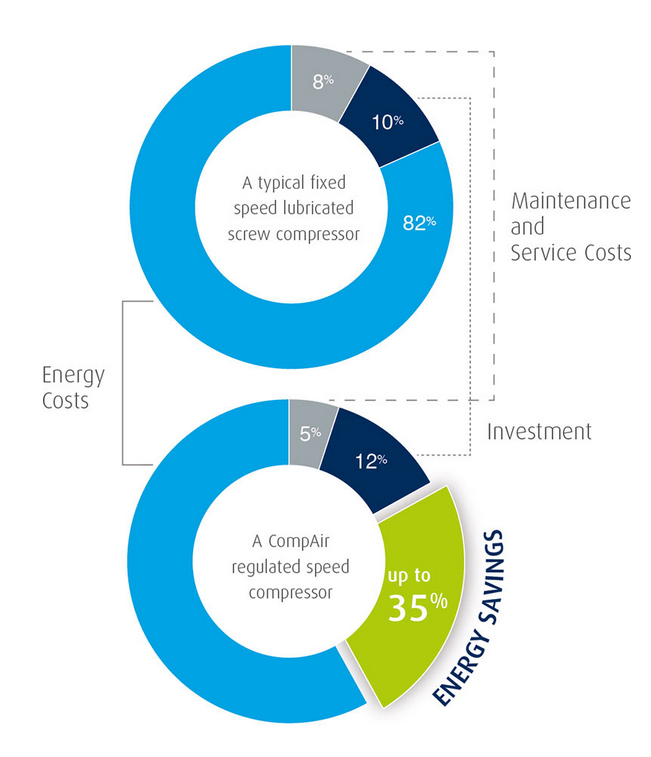

The biggest cost component of an air compressor in its lifetime is the consumption of electricity during operation. Therefore, reducing the energy costs of running the compressor has a significant impact on the total cost of your investment.

CompAir's L55-L75 RS series inverter models save energy by precisely adjusting the production of compressed air to factory demand. The wide range of supply fluctuations and the absence of off-load offer significant economic benefits over a corresponding constant-speed compressor.

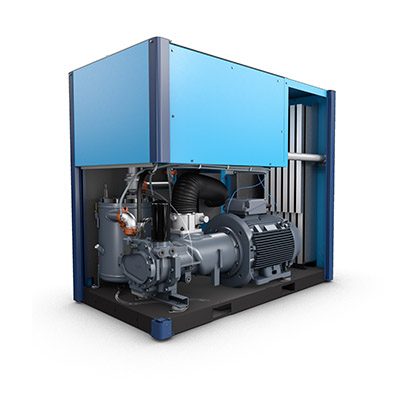

The online compression motor assembly with rubber coupler delivers high performance over the entire compressor operating range.



























Unique advantages and top class components



• Large surface air cooler

Optimum cooling ensures low operating temperatures and compressed air at the compressor outle

• New generation of air-oil separator

The large surface separator ensures consistent performance throughout its operation, ensuring minimum oil transfer (<3ppm).

• High-efficiency electric motor

The air compressors are equipped with an energy efficient IE4 class motor.

• Thermostatically controlled electric motor fan

The extremely efficient and low noise fan allows the compressor to be operated on site and to accommodate a long air duct without the need for further equipment.

• High quality connections

Rugged hoses with Viton connectors are easy to maintain, reducing service life significantly.

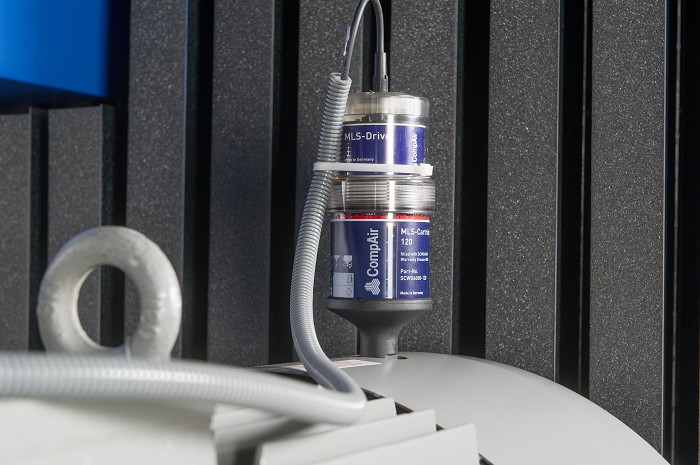

• Automatic grease on the motor lubrication system for optimum protection



• Innovative oil regulating valve improves efficiency by up to 5%



• Remote monitor system iConn

The iConn system allows remote control of equipment and continuous monitoring of your compressor's operating status.

Superior design



The special design of the new L90-L132 RS compressors range from 90 to 132 kW offers improved up to 6% energy efficiency compared to the top models in the market, as well as 7% more air supply.

The air compressors are equipped with Class I3 power motors, with the option of an IE4 class efficiency motor. The new L90-L132 RS inverter models save energy by precisely adjusting the production of compressed air to factory demand. The wide range of supply fluctuations and the absence of downtime offer significant economic benefits. The on-line compression-drive compression element assembly with elastic coupler achieves an even higher energy efficiency.



The design idea is not only based on energy efficiency, but also on reliable operation and low maintenance costs. Therefore, this series of air compressors ensures that all service points are easily accessible. The reduced number of moving parts also contributes to lower maintenance costs.











Delcos XL innovative touch screen compressor controller



The Delcos XL with its high resolution touch screen display is extremely user-friendly and self-explanatory. All functions are clearly structured in five main menus and are intuitively visual. The multilingual Delcos XL control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters, which is essential for reducing your running costs

Features & functions

1.  Delcos XL Controller available in Greek language
2. Home Page - instant overview of the compressor status
3. Diagrams for better visual imaging of values
4. Real Time Clock - allows pre-setting of compressor starting/stopping
5. Second Pressure Setting
6. Integrated Cooling and Dryer Control
7. Fault History Log - for in-depth analysis
8. Remote Control via Programmable Inputs
9. Auto Restart after Power Failure
10. Optional Base Load Sequencing
11. SD Card - stores several run characteristics
12. RS485 - Modbus RTU
