L23 - L29 RS (22 - 30kW)

Lubricated Rotary Screw Compressor 7 - 22 kW fixed and variable speed

From 22 to 30 kW, L23 – L29 RS

Energy efficiency has spurred the development of the CompAir L23-L29 RS compressor range.

The high-performance compression element allows operation at low rotational speeds, significantly reducing energy costs.

In addition, the innovative design of the compressor sealing seal, the integrated oil filter and the oil regulating valve minimize the need for external hoses, ensuring higher levels of quality and reliability.

Unique advantages

The industrial range of L23-L29 RS compressors, powering from 22 to 30 kW, includes fixed-speed and adjustable-speed (inverter) models, and has the option of incorporating a built-in refrigerator and high-efficiency heat recovery system for maximum energy savings.

• Top quality materials with 10-year AssureTM 10-year warranty
• Easy installation and simple operation
• Low maintenance cost
• Small footprint (m2)
• Direct 1: 1 compression element connection to motor

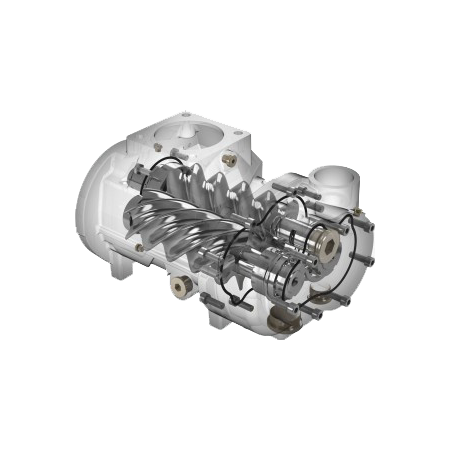

• Energy efficient German design air end
• Remote Monitoring System iConn

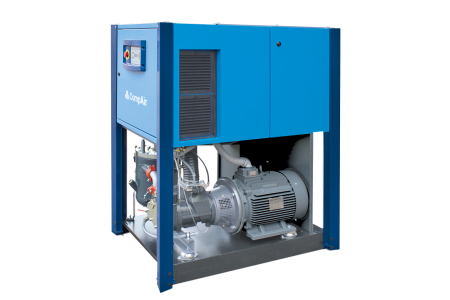

Top class design

Modern design and quality components provide the reliability that operators expect from CompAir's L23-L29 RS air compressor series. The high-performance compression element and the efficient IE3 power class motor are directly connected 1: 1 and are the key components that guarantee the highest levels of energy efficiency.

The air-oil separator provides high quality separation and ensures the purity of compressed air in less than 3ppm oil droplets. The highly efficient and low noise fan of the unit allows the air compressor to operate in the compressed air area and can easily remove heat from the room via a long air duct without the need for further equipment.

Advanced controller Delcos Pro

The Delcos Pro controller allows the user to easily adjust the pressure and ensure smooth compressor operation while protecting your investment through continuous monitoring of all critical operating parameters. The Delcos Pro controller features user-programmable inputs and outputs, and provides reliable control of extras by presenting all relevant information in clear, legible text:

1. Discharge / line pressure indicator
2. Air / oil temperature display
3. Total operating hours and operating hours under load
4. Service due indicator
5. Enhanced fault log monitor
6. Real time clock
7. Timer controlled stop/start
8. Remote start/stop
9. Auto restart after power failure
10. Second pressure settingς
11. RS485 - Modbus RTU
