L07 - L22 (7 - 22kW)

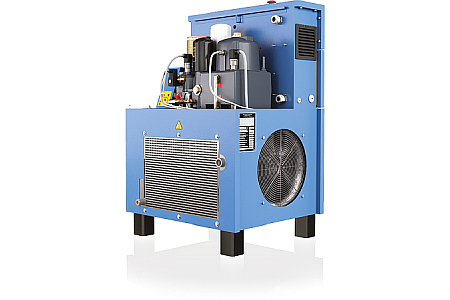

Lubricated Rotary Screw Compressor 7 - 22 kW fixed and variable speed

From 7 to 22 kW, L07 – L22 RS

CompAir's L07-L22 RS range, ranging from 7 to 22 kW, incorporates the latest technological advancements in components designed for long life and provide operators with seamless operation.

The design philosophy is based on absolute reliability and flexibility. The availability of numerous different versions and options makes this range of air compressors suitable for all applications. It offers the ability to operate in an inverter with integrated airbag, including an airstation dryer and the option of heat recovery for maximum energy savings.

Unique advantages

CompAir's L07-L22 RS compressors range from 7 to 22 kW are distinguished for their high reliability and quality of compressed air output.

• Top quality materials with 10-year AssureTM 10-year warranty
• Easy installation and simple operation
• Low maintenance cost
• Small footprint (m2)
• Energy efficient German design air end
• Remote Monitoring System iConn

Top class design

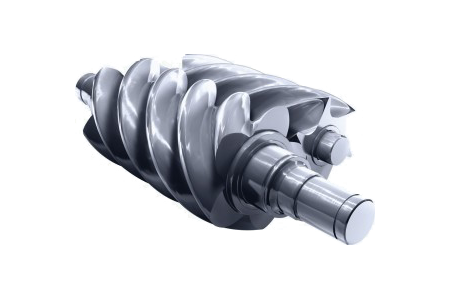

The advanced design of the high performance bolt allows it to operate at low rotational speeds resulting in energy savings and a low noise level that allows it to be positioned close to the point of use. The optimized layout of the oil separator, oil filter and thermostatic valve reduces the number of external pipes and fittings providing excellent reliability.

The L07-L22 RS series compressors, powered from 7.5 to 22 kW, are equipped with a high energy class IE3 motor for extra energy savings and reduced CO2 emissions.

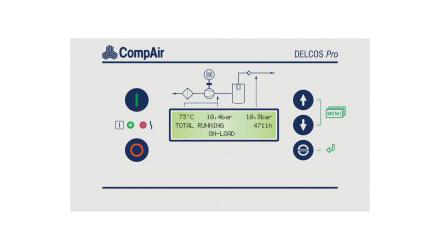

Advanced controller Delcos Pro

The Delcos Pro controller allows the user to easily adjust the pressure and ensure smooth compressor operation while protecting your investment through continuous monitoring of all critical operating parameters. The Delcos Pro controller features user-programmable inputs and outputs, and provides reliable control of extras by presenting all relevant information in clear, legible text:

1. Discharge / line pressure indicator
2. Air / oil temperature display
3. Total operating hours and operating hours under load
4. Service due indicator
5. Enhanced fault log monitor
6. Real time clock
7. Timer controlled stop/start
8. Remote start/stop
9. Auto restart after power failure
10. Second pressure settingς
11. RS485 - Modbus RTU
